Stop Paying For SSL Certificates You Don’t Need

Securing your stack with a SSL/TLS doesn't have to be costly or time consuming. There are two sides to TLS: Public Key Infrastructure (PKI) and Public Key/Asymmetric Cryptography. Hopefully your public network data is already encrypted with SSL/TLS (leveraging Public Key Cryptography), but you can also leverage a PKI to easily gain additional security wins for your internal network traffic.

SSL/TLS is most frequently used for encrypting data on the wire. You want to prevent the person next to you at Starbucks from being able to see your password as you submit a login form on the WiFi. It is used to verify the identity of a web server -- peer verification. You want to know that data going to and from www.tinfoilsecurity.com actually is coming from our servers, and not from someone else's. Early on in the TLS handshake your browser (and any underlying library like OpenSSL) does most of the heavy lifting for you: checking that the certificate's CommonName or SubjectAltNames matches the hostname and verifying the chain of trust. However, a tragically rarely used feature of SSL/TLS is that the client also has the opportunity to present a certificate during the handshake and the server can use it to verify the client's identity as well.

Why doesn't every browser present a certificate to every SSL website identifying the visitor as me? It certainly would make logins simple, but the rub comes with trust -- any certificate could identify the user as Ben Sedat. Public Key Infrastructure tries to solve this, and if both the website and client trust an authority to sign the certificates and keep track of them then you can establish a trusted link and make it a lot harder to forge fake things into the system.

Websites do this by requesting a certificate from a set of known Certificate Authorities. Browsers and operating systems keep lists of valid CAs and alert you when the certificate's chain of trust isn't valid. These CAs charge for their services, usually anywhere from $10 to $100 a year. Both you and your website's visitor trust the CA and everything works well, at least until it doesn't. What isn't widely publicized is that you can easily set up your own CA.

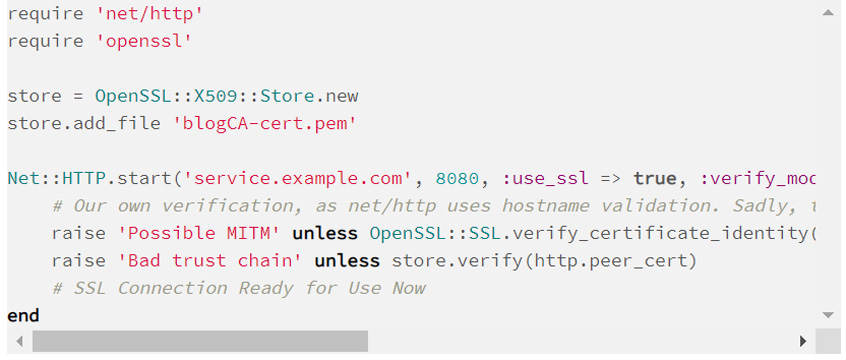

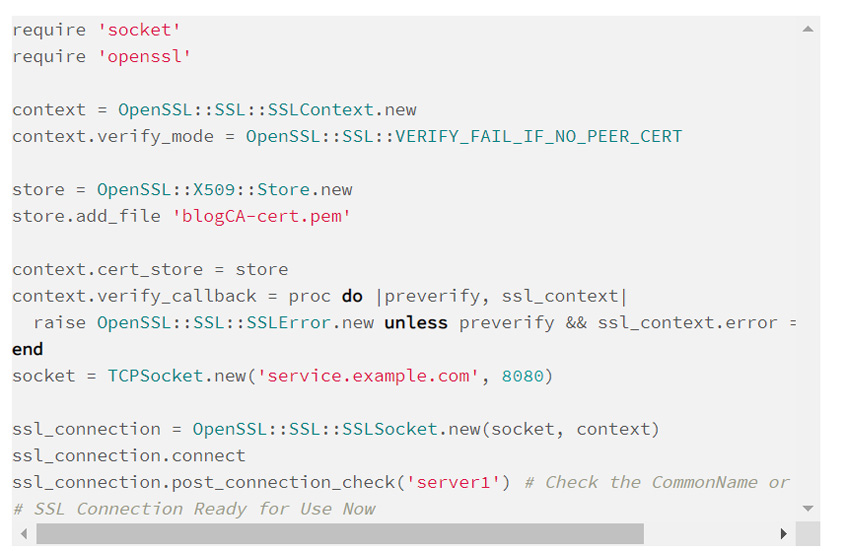

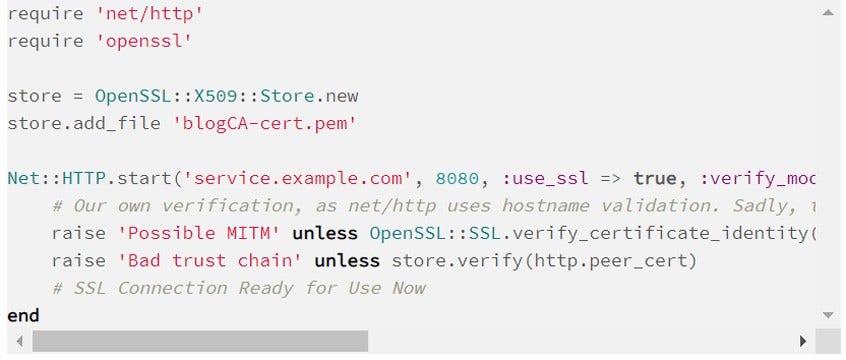

This CA isn't going to be trusted by your website visitors, but your infrastructure can trust it as long as you keep it safe. All too often we see companies and services disabling SSL entirely. They think that they need an expensive certificate, signed by a well-known CA. In the case of a website with clients that aren't under your control, that may be necessary. However, if you have more direct control over the client (like if you're your own API client) you can establish who you want to trust. Many libraries, like the Ruby hooks around OpenSSL and SSL connections allow you to specify which certificate authorities you want to trust in addition to the system defaults.

There isn't a perfect security system but you can easily add hurdles to delay and frustrate an attacker. SSL encryption of internet traffic is one such hurdle, and enforcing client/server identities on top creates one more hoop an attacker has to jump through to be successful. A client certificate isn't the be-all-end-all either -- it can be combined with usernames/passwords, two-factor authentication on another device, or all sorts of other methods to harden a system even more.

Go Forth and Make Your Own CA

OpenSSL is the de-facto standard command line utility for dealing with certificates. At Tinfoil we also really like XCA (http://sourceforge.net/projects/xca/); it's open-source and provides a (mostly) usable UI over the somewhat arcane OpenSSL invocations. Creating a CA and some certificates is easy in XCA, and once you're done you can have pieces of your application authenticating each other and keeping the communication secure.

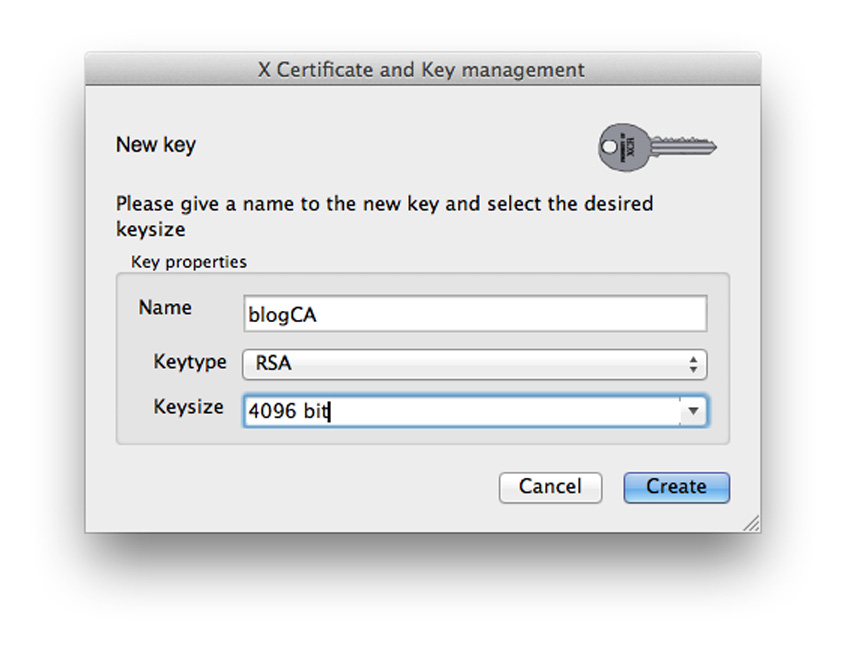

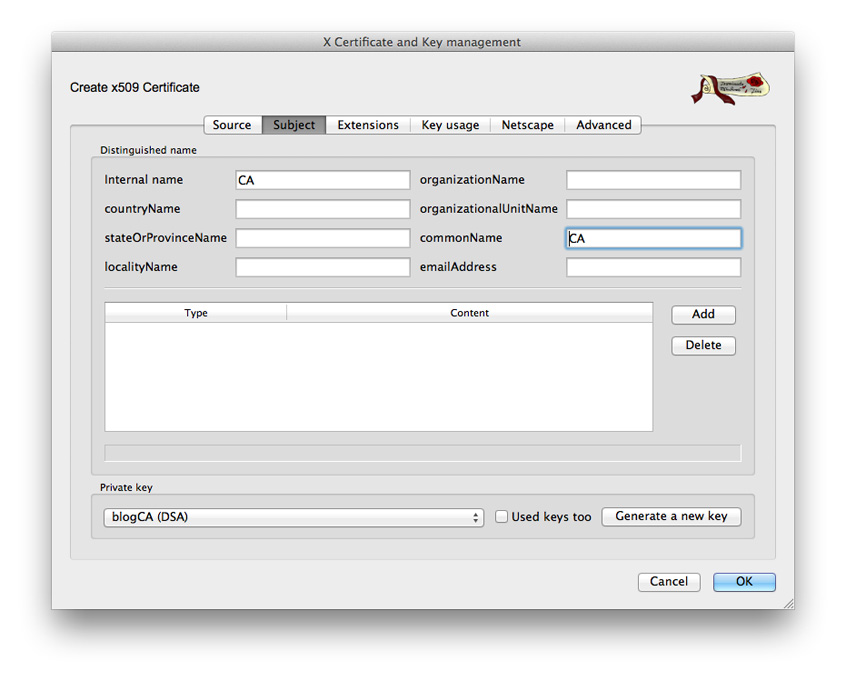

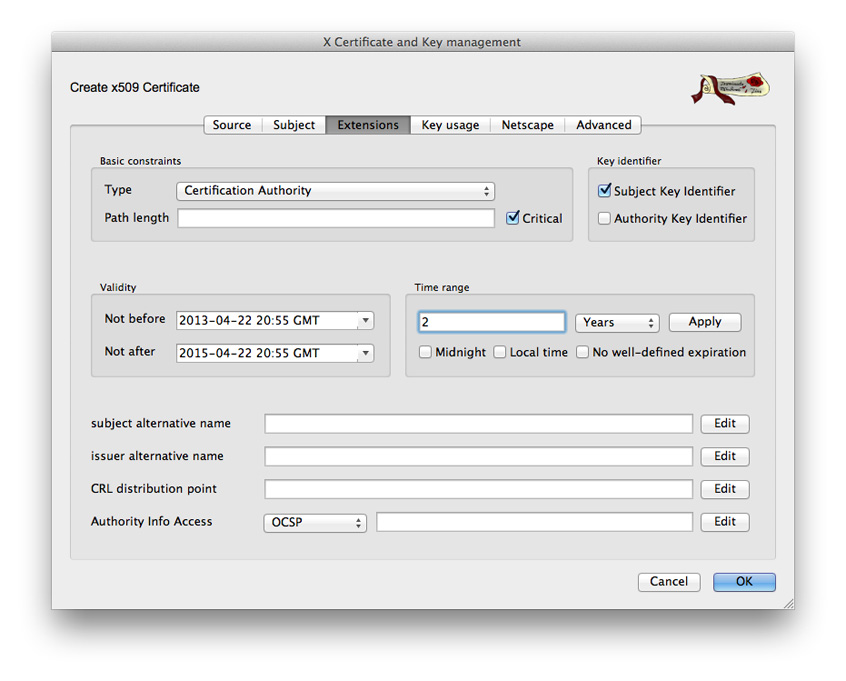

Creating a certificate authority

First secure your XCA database (and private keys) with good password(s). Keep these safe, and don't put it anywhere digital! This is a critical layer of security for your CA.

The equivalent openssl incantations (for newer OpenSSL versions it may be easier to use the genpkey command):
RSA: openssl genrsa -des3 -out blogCA-key.pem <bytes>
DSA: openssl dsaparam -out blogCA-params.pem
openssl gendsa -des3 -out blogCA-key.pem blogCA-params.pem
ECDSA: openssl ecparam -out blogCA-params.pem
openssl ecparam -genkey -in blogCA-params.pem -out blogCA-key.pem
openssl ec -des3 -in blogCA-key.pem -out blogCA-key.pem

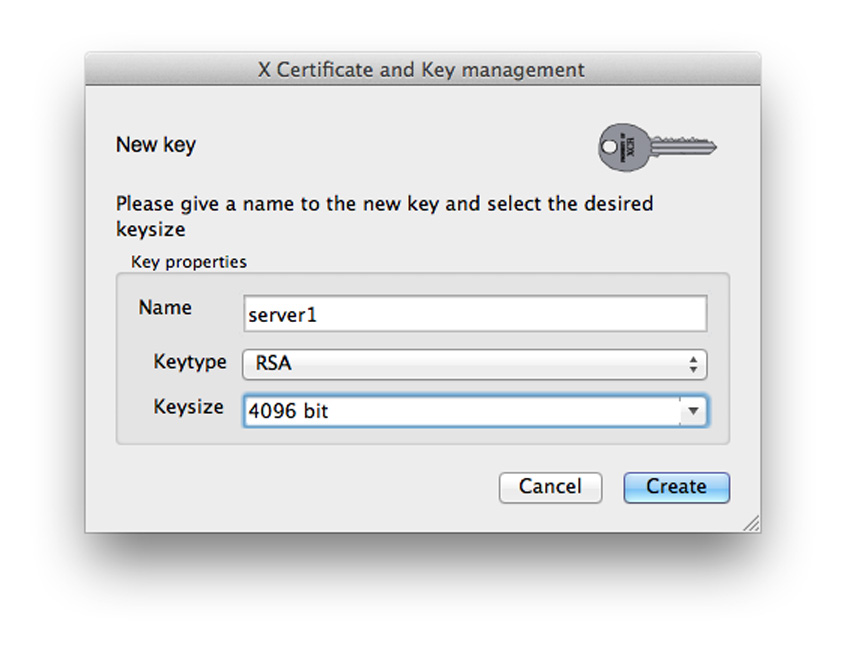

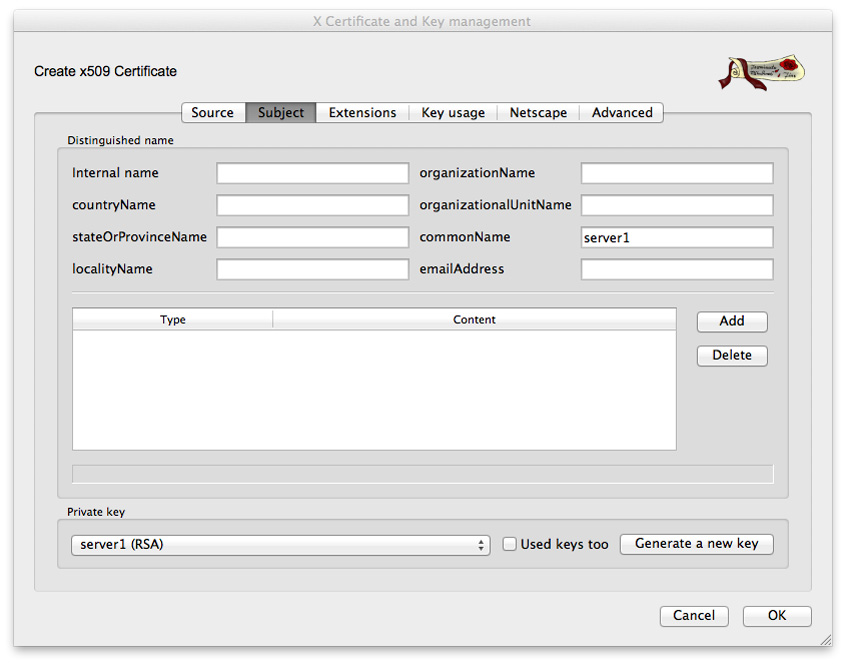

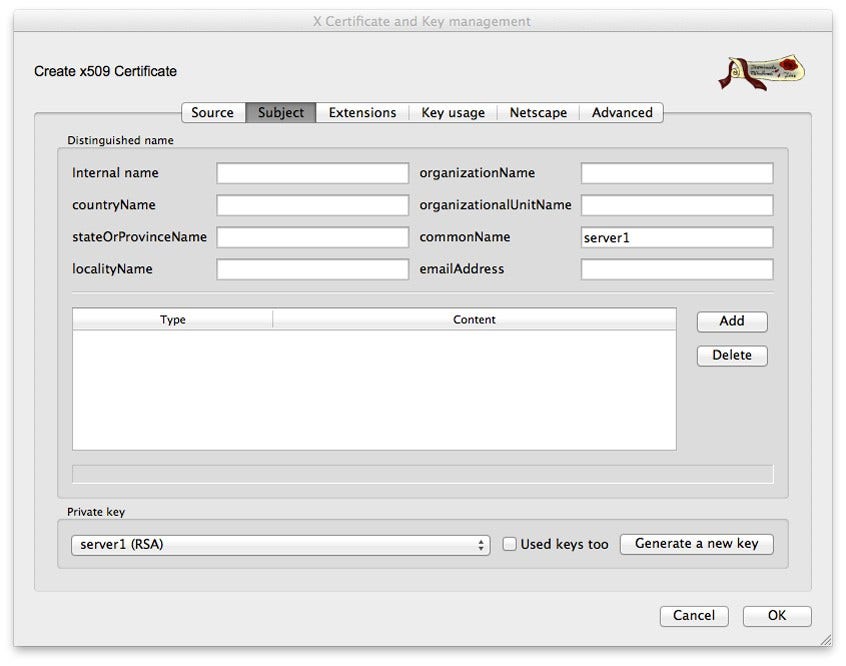

You can repeat this process for your servers, and/or your clients. Now you have all the credential pieces to have pieces of your infrastructure reveal themselves and verify each other during communication.
