How to break car kits with Bluetooth fuzz testing

The habit of breaking things

When I was a child, I liked to break things to see how they were built. When I was older, I didn’t grow out of this habit. In fact, I joined a company with like-minded individuals. Now we don’t break things just for the sake of breaking them; we break them to uncover software security weaknesses and fix them.

Deconstructing things allows you to understand not only how they are built but also how they can be built better. By breaking software using solutions we’ve developed, we’re able to understand how it’s built, uncover vulnerabilities that can be abused, and fix those vulnerabilities to build more robust, secure software.

Finding vulnerabilities in Bluetooth-enabled car kits

There are several methods for finding vulnerabilities and issues in Bluetooth-enabled devices, fuzz testing being one of them.

Fuzz testing is a method of feeding applications automatically generated, unexpected inputs. Fuzz testing addresses the question “What happens if I purposely input invalid values into an application?” with efficiency and, based on the sophistication of your fuzzer, effectiveness.

Learn more about fuzz testing

Here’s an example. Let’s say an application has an input field that expects a first name. Fuzz testing enables testers to execute on the question, “What happens if I feed multiple variations of over 10,000 ‘a’ characters into it?” Most security researchers, and perhaps hackers, will likely aim to overflow an unbound memory or trigger other anomalous reactions. Let’s add another level of complexity to this example: What if we were to modify the invalid input by adding a C++ format specifier—for example, “%s”—to trick the application into granting us improper memory access? Can you think of some other unexpected input?

Some applications can handle these types of unexpected inputs just fine. However, others may crash and even allow attackers to execute commands for fun—or for profit at the expense of end users. Unauthorized access and absent fail-safes are particularly concerning in systems and software related to safety-critical fields, such as automotive.

Because practically all modern car kits are Bluetooth-enabled, fuzz testing is highly relevant in the automotive industry. In this post, I’ll explain how we built a solution to fuzz Bluetooth-enabled devices, the challenges we ran into, and how we solved them.

Why it’s beneficial to find vulnerabilities in car kits

Hackers enjoy solving technical challenges. The joy of finding an elegant solution to a technical problem is very similar to the joy of solving a difficult puzzle. However, some people like to break things to be mischievous, and some even make a living finding and exploiting vulnerabilities for criminal purposes.

Join the conversation in the Synopsys Community.

Because cars are ubiquitous and expensive, they attract criminals of all types, even from a cyber security perspective. Add the fact that modern cars incorporate more software with each new model, which increases the attack surface, and cars begin to look like ubiquitous, expensive, and easily hackable targets.

It’s critical to ensure that remotely exploitable vulnerabilities are not reasons for pricey, brand-damaging mass recalls. In the automotive industry, proactive security engineering yields a high return on investment because there are only a few technology providers for car kits. Thus, any issue found early saves providers from dealing with hundreds of thousands of vulnerability-infected cars.

How to fuzz Bluetooth

To fuzz test Bluetooth, we needed to answer two questions:

• How can we generate unexpected input?
• How can we send this data to Bluetooth-enabled devices?

Defensics provided a solution to the first challenge.

Defensics can fuzz Bluetooth protocols by modeling them—meaning Defensics learns the “rules” that govern valid communication via the Bluetooth protocols. Effective fuzzers have a deep understanding of the protocol specifications; they understand how to tweak inputs just enough for the system to accept them without blocking them. As the old saying by Pablo Picasso goes, “Learn the rules like a professional so you can break them like an artist.” While there are other ways to do this, we’ll focus here on model-based fuzz testing.

To address the second question, we had to analyze the system under test (SUT). A viable target device must meet software and hardware requirements to receive fuzzed inputs from fuzzers such as Defensics. Specifically, we needed a network stack, also known as a protocol stack, which is an implementation of protocols that enables devices to communicate with one another. Stacks are usually separated into layers, with each layer having its own responsibility. Stacks ensure the interoperability between different protocols.

Getting a fuzzable Bluetooth stack

So how did we get a Bluetooth stack suitable for fuzz testing? We considered two options:

1. Make our own Bluetooth stack.
2. Buy an existing Bluetooth stack.

The biggest benefit of making our own stack was that we could build it with fuzz testing in mind. On the other hand, buying an existing stack would save us development time, giving us a head start against unethical hackers, but we would need to modify the stack to suit our fuzz testing needs. This process would include ensuring that the stack did not crash when we sent unexpected data through it.

After careful consideration, we chose to purchase an existing stack, allowing us to concentrate our development efforts on security, especially fuzz testing.

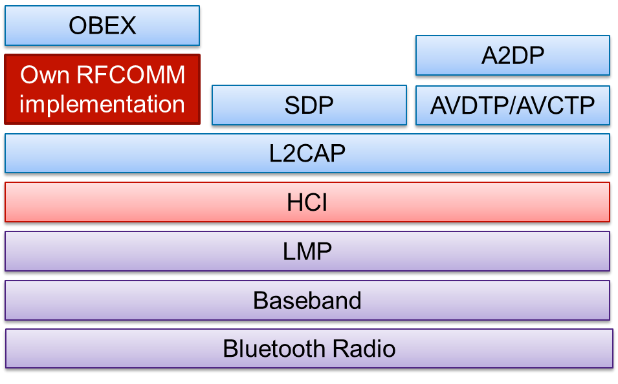

Let’s study the simplified Bluetooth stack in Figure 1 and use RFCOMM as an example. RFCOMM provides emulated RS-232 ports and works as a transport layer to several higher-layer protocols, such as HFP, SPP, and OBEX. The stack we purchased had RFCOMM implemented. So what modifications are required to fuzz the RFCOMM implementation of the target device? Surprisingly, removing the validity checks in the stack was very easy. It required just a few modifications.

Modifying an entire layer, however, is a different story. Creating an RFCOMM connection requires a negotiation sequence to be sent between two devices. What if we want to fuzz the negotiation messages by feeding invalid parameters to the test target? The difficulty here is that we cannot use the RFCOMM implementation within the stack, because it speaks valid RFCOMM. The solution we came to was to skip the RFCOMM implementation completely.

How did we do this? As we can see in Figure 1, RFCOMM messages are sent over L2CAP, meaning they’re sent as a payload of L2CAP messages. We wrote our own implementation of RFCOMM, which communicates directly with the stack’s L2CAP implementation, allowing us to bypass the stack’s RFCOMM implementation completely. Now we have a solution to feed whatever we want against the RFCOMM implementation of the target through the stack’s L2CAP implementation. The end result of this practice was Defensics RFCOMM test suite.

We took a similar approach for several other Bluetooth layers and services.

Ready to fuzz car kits—or are we?

Now we had a solution that allowed us to fuzz different Bluetooth devices. The Defensics team and our customers found and fixed important issues such as CVE-2017-2420 using the solution. We also implemented fuzzers for Bluetooth Low Energy, but that’s a story for another time.

As we continued to work with the Defensics Bluetooth test suite, we noticed we had interoperability problems with some car kits. The interoperability resulted from two main issues:

1. The car kits often wanted to connect to multiple profiles simultaneously.

• For example, if we wanted to fuzz the functionality of A2DP Sink—a protocol responsible for playing audio from the mobile device through the speakers—it wasn’t enough to connect only to that profile. We also had to connect to the AVRCP Profile and, in some cases, the Hands-Free Profile.
• On the stack level, the pairing looked successful. However, on further investigation, the car kit indicated that the test tools were not paired to

1. The car kits did not accept incoming connections.

• For example, many car kits wanted to initiate the link-level connection to our test tools. However, Defensics also wanted to be the initiator, which resulted in Defensics refusing incoming link requests. The same connection problem recurred on several Bluetooth layers.

Why do car kits work this way? It’s because they’re expecting to connect to smartphones.

Solution for connection problems with car kits

To resolve our interoperability problems with car kits, we needed to act like a smartphone and simulate the services it provides to car kits. With the help of several excellent Bluetooth sniffers, we researched how popular smartphones interact with car kits. We realized that we needed to be able to do the following:

1. Accept incoming connection requests for:

• Link
• L2CAP
• RFCOMM

1. Simulate commonly used services:

• A2DP Source and Sink
• AVRCP Target and Controller
• Hands-Free Audio Gateway and Unit

To simulate these services, we captured Bluetooth traffic between phones and car kits. Because our purpose was to find vulnerabilities and verify the robustness of devices rather than test their conformance, we implemented only the services that allowed us to establish a connection and execute our fuzz tests.

We also moved a significant amount of our application logic from C-native code to Java side. We love C but found that the switch made debugging much easier and enabled the flexibility and modularity we needed. Additionally, our platform now runs on top of Linux. Linux has superb development tools for Bluetooth, such as Wireshark, straight out of the box and offers freedom from Windows drivers.
